السؤال
Transcribed Image Text:

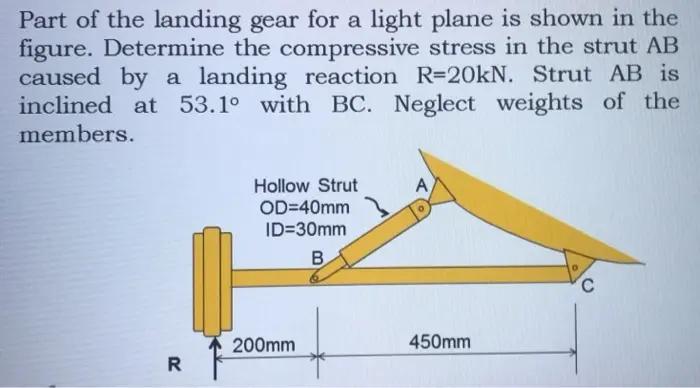

Part of the landing gear for a light plane is shown in the
figure. Determine the compressive stress in the strut AB
caused by a landing reaction R=20kN. Strut AB is
inclined at 53.1° with BC. Neglect weights of the
members.
Hollow Strut
OD=40mm
ID=30mm
B
A
с
200mm
450mm
R
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
