السؤال
Transcribed Image Text:

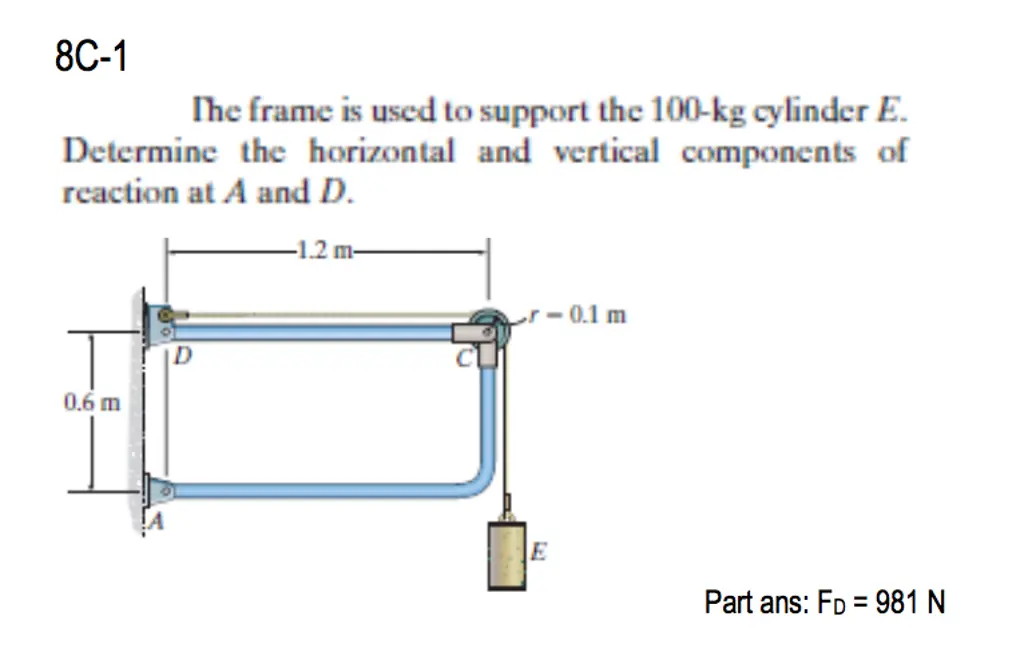

8C-1
The frame is used to support the 100-kg cylinder E.
Determine the horizontal and vertical components of
reaction at A and D.
0.6 m
D
-1.2 m-
r-0.1 m
E
Part ans: FD=981 N
