السؤال

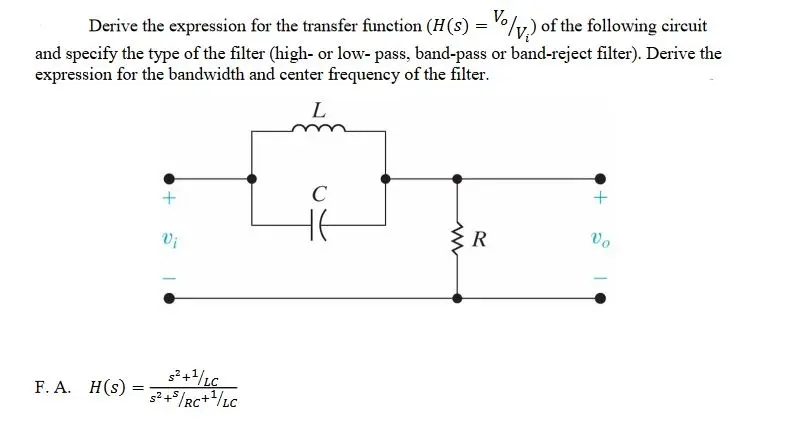

Transcribed Image Text:
Derive the expression for the transfer function (H(s) = v/v) of the following circuit
and specify the type of the filter (high- or low-pass, band-pass or band-reject filter). Derive the
expression for the bandwidth and center frequency of the filter.
L
C
+
Vi
F. A. H(s)
=
s²+1/LC
s²+5/RC+¹/LC
www
+
Vo
R
