السؤال

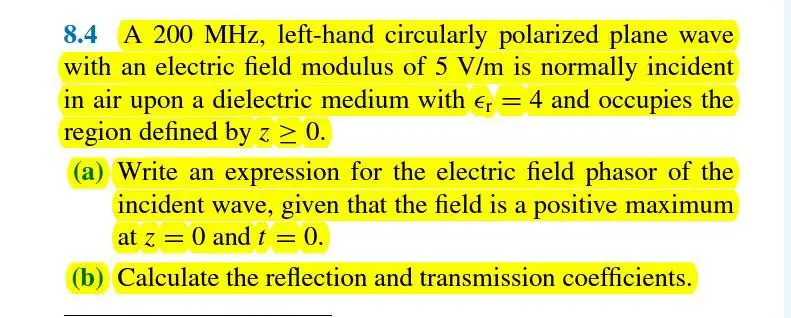

Transcribed Image Text:
8.4 A 200 MHz, left-hand circularly polarized plane wave
with an electric field modulus of 5 V/m is normally incident
in air upon a dielectric medium with εr = 4 and occupies the
region defined by z > 0.
er
(a) Write an expression for the electric field phasor of the
incident wave, given that the field is a positive maximum
at z = 0 and t = 0.
(b) Calculate the reflection and transmission coefficients.
Write expressions for the electric field phasors of the
reflected wave, the transmitted wave, and the total field
in the region z≤0.
(d) Determine the percentages of the incident average power
reflected by the boundary and transmitted into the second
medium.
