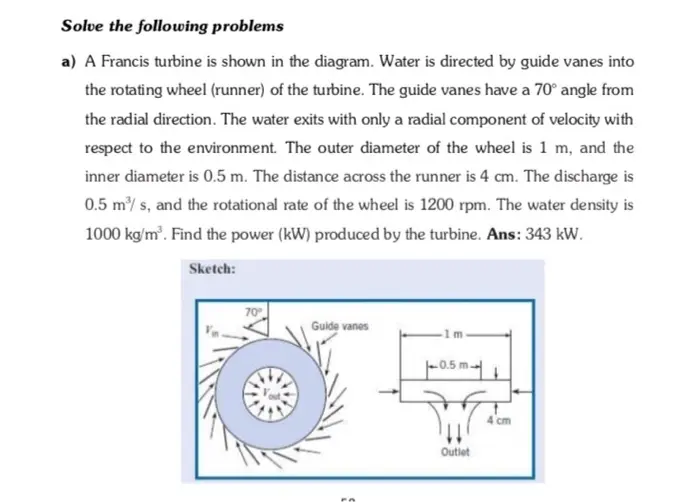

Solve the following problems a) A Francis turbine is shown in the diagram. Water is directed by guide vanes into the rotating wheel (runner) of the turbine. The guide vanes have a 70° angle from the radial direction. The water exits with only a radial component of velocity with respect to the environment. The outer diameter of the wheel is 1 m, and the inner diameter is 0.5 m. The distance across the runner is 4 cm. The discharge is 0.5 m³/s, and the rotational rate of the wheel is 1200 rpm. The water density is 1000 kg/m³. Find the power (kW) produced by the turbine. Ans: 343 kW. Sketch: Guide vanes 0.5 m Outlet cm
