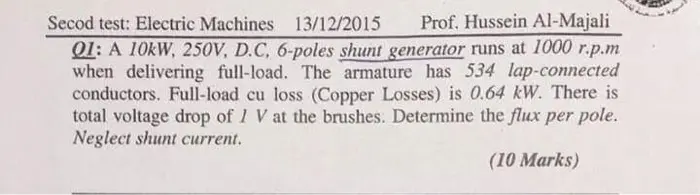

Secod test: Electric Machines 13/12/2015 Prof. Hussein Al-Majali Q1: A 10kW, 250V, D.C, 6-poles shunt generator runs at 1000 r.p.m when delivering full-load. The armature has 534 lap-connected conductors. Full-load cu loss (Copper Losses) is 0.64 kW. There is total voltage drop of 1 V at the brushes. Determine the flux per pole. Neglect shunt current. (10 Marks)
