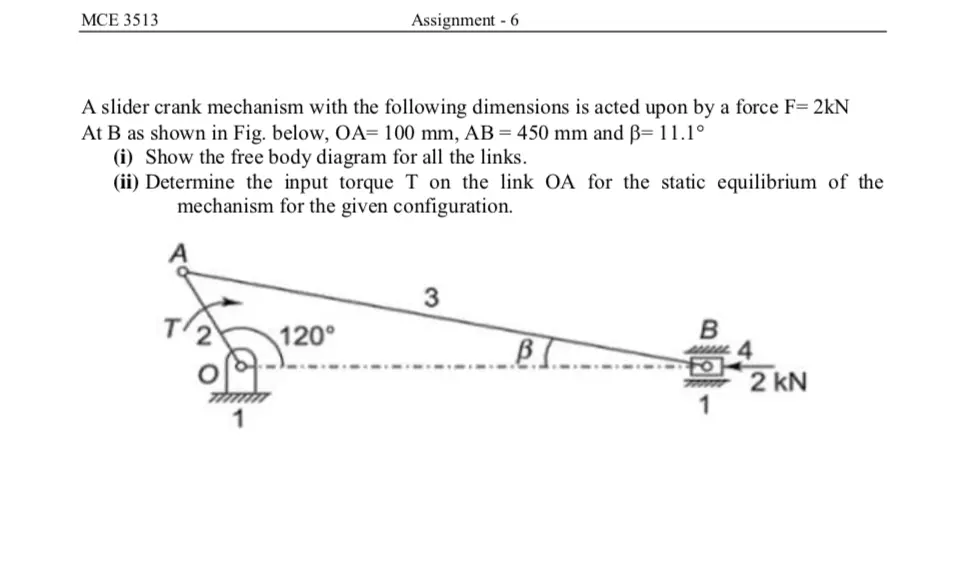

MCE 3513 Assignment - 6 A slider crank mechanism with the following dimensions is acted upon by a force F= 2kN At B as shown in Fig. below, OA= 100 mm, AB = 450 mm and ẞ= 11.1° (i) Show the free body diagram for all the links. (ii) Determine the input torque T on the link OA for the static equilibrium of the mechanism for the given configuration. Timin 120° B 4 FO 2 kN
