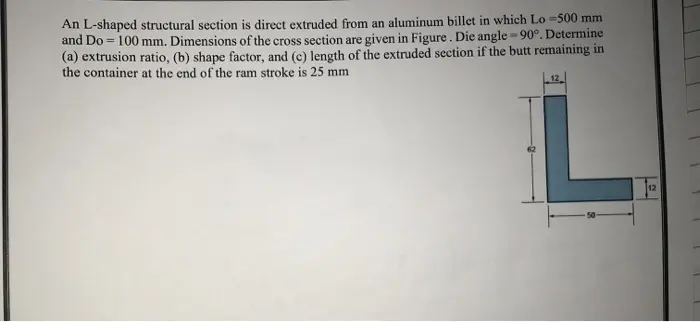

An L-shaped structural section is direct extruded from an aluminum billet in which Lo =500 mm and Do 100 mm. Dimensions of the cross section are given in Figure. Die angle 90°. Determine (a) extrusion ratio, (b) shape factor, and (c) length of the extruded section if the butt remaining in the container at the end of the ram stroke is 25 mm 12
