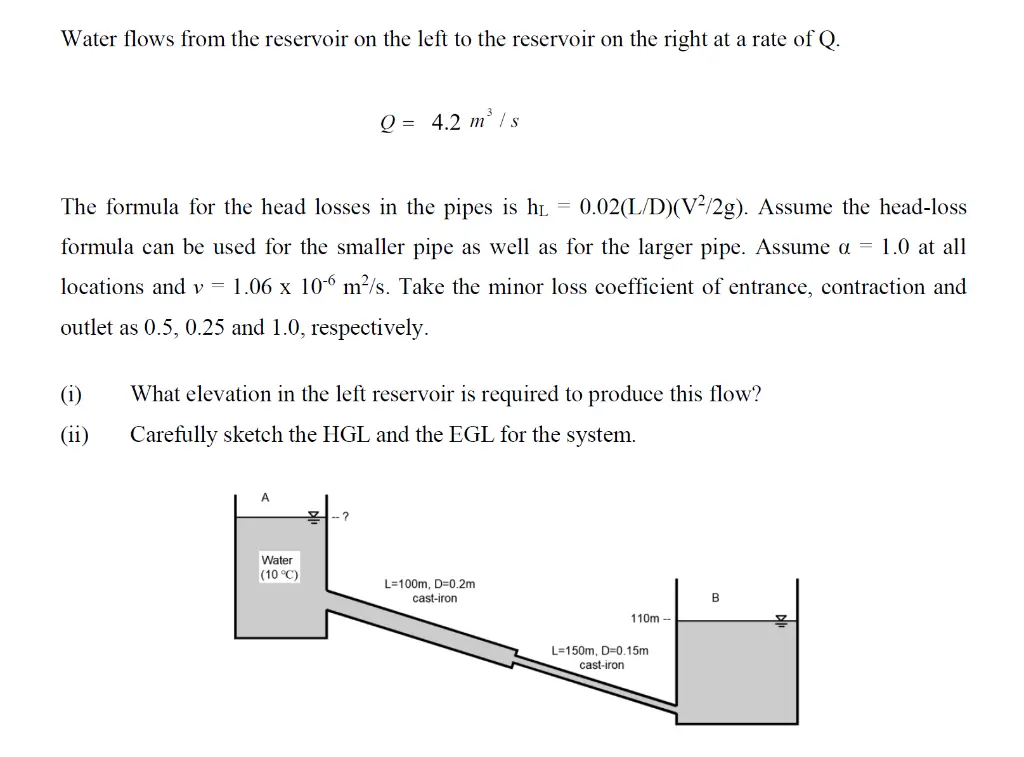

Water flows from the reservoir on the left to the reservoir on the right at a rate of Q. Q = 4.2 m³/s The formula for the head losses in the pipes is hL = 0.02(L/D)(V²/2g). Assume the head-loss formula can be used for the smaller pipe as well as for the larger pipe. Assume a = 1.0 at all locations and v = 1.06 x 106 m²/s. Take the minor loss coefficient of entrance, contraction and outlet as 0.5, 0.25 and 1.0, respectively. (i) What elevation in the left reservoir is required to produce this flow? (11) Carefully sketch the HGL and the EGL for the system. -? Water (10 °C) L=100m, D=0.2m cast-iron 110m- L=150m, D=0.15m cast-iron B
