السؤال
Transcribed Image Text:

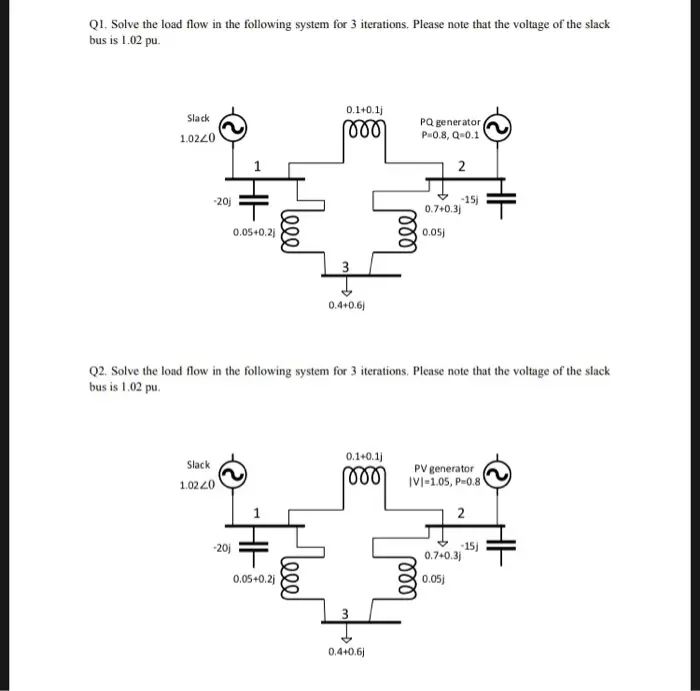

Q1. Solve the load flow in the following system for 3 iterations. Please note that the voltage of the slack
bus is 1.02 pu.
Slack
1.0220
H
-20j
0.05+0.2)
leee
0.1+0.1j
PQ generator
P=0.8, Q=0.1
0.4+0.6)
2
-15)
0.7+0.3j
0.05)
Q2. Solve the load flow in the following system for 3 iterations. Please note that the voltage of the slack
bus is 1.02 pu.
0.1+0.1)
Slack
1.0220
1000
20
-20j
0.05+0.2j
Leee
0.4+0.6j
PV generator
IV-1.05, P=0.8
2
-15j
0.7+0.3j
0.05j
