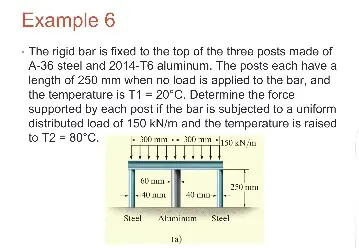

Example 6 . The rigid bar is fixed to the top of the three posts made of A-36 steel and 2014-T6 aluminum. The posts each have a length of 250 mm when no load is applied to the bar, and the temperature is T1 = 20°C. Determine the force supported by each post if the bar is subjected to a uniform distributed load of 150 kN/m and the temperature is raised to T2 = 80°C. 100mm 300mm 150 N 60 -40 a 4000- Steel Aluminum Sleel la) 250
