السؤال
Transcribed Image Text:

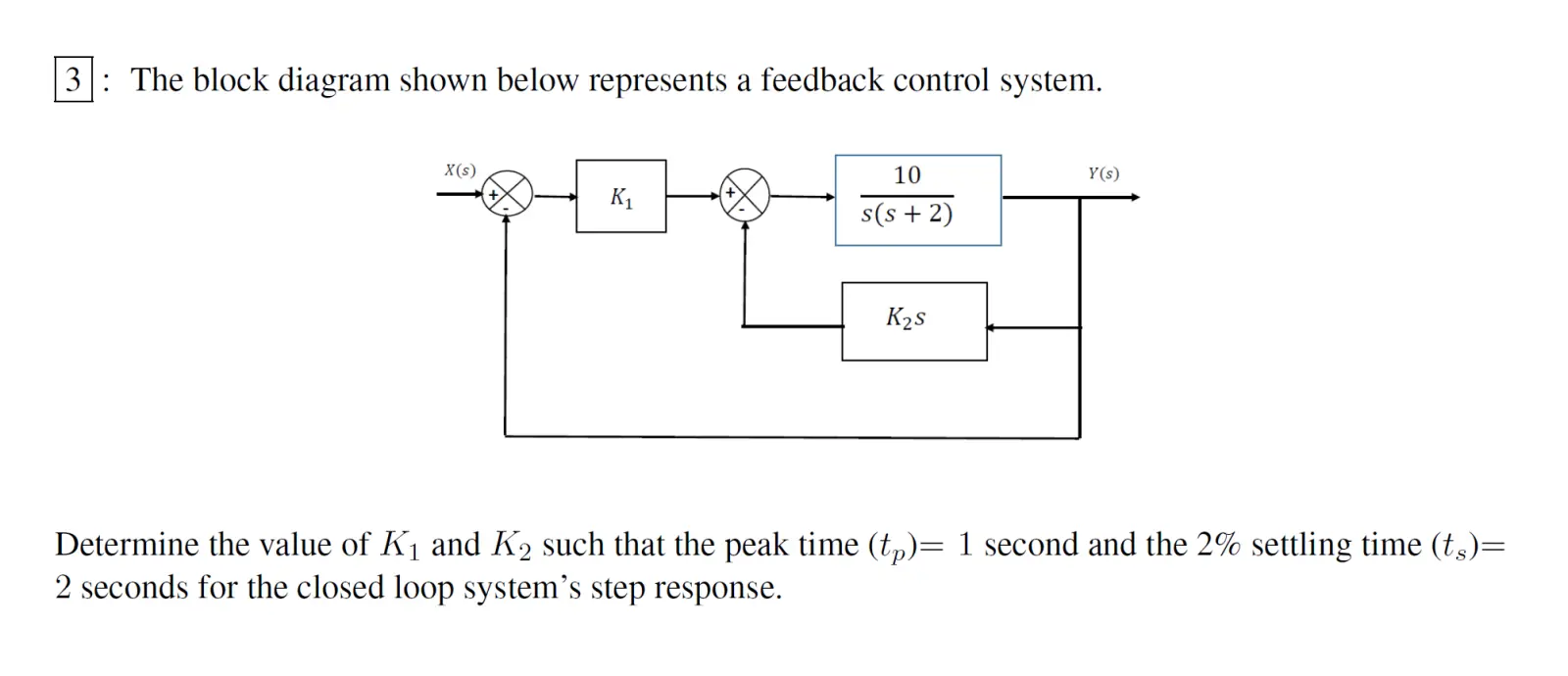

3: The block diagram shown below represents a feedback control system.
X(s)
K₁
10
Y(s)
s(s + 2)
K2S
Determine the value of K₁ and K₂ such that the peak time (tp)= 1 second and the 2% settling time (t)=
2 seconds for the closed loop system's step response.
