السؤال

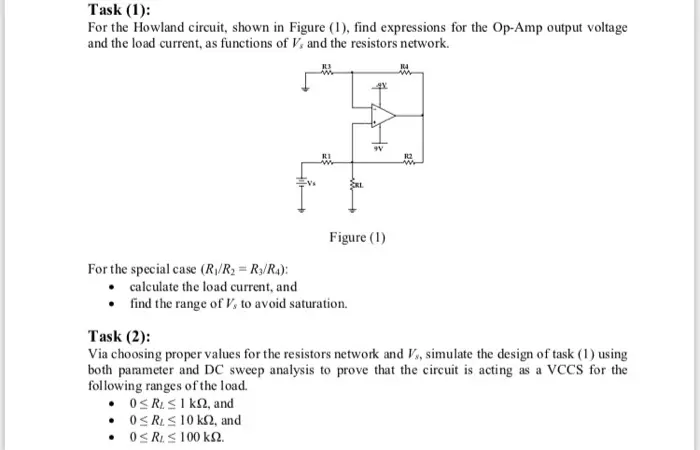

Transcribed Image Text:
Task (1):
For the Howland circuit, shown in Figure (1), find expressions for the Op-Amp output voltage
and the load current, as functions of V, and the resistors network.
R4
9V
12
w
Figure (1)
For the special case (R₁/R₂ = R3/R4):
calculate the load current, and
⚫find the range of V, to avoid saturation.
Task (2):
Via choosing proper values for the resistors network and V., simulate the design of task (1) using
both parameter and DC sweep analysis to prove that the circuit is acting as a VCCS for the
following ranges of the load.
0≤RL≤1k, and
0≤RL≤ 10 kn, and
⚫ 0≤RL≤ 100 ks2.
