السؤال

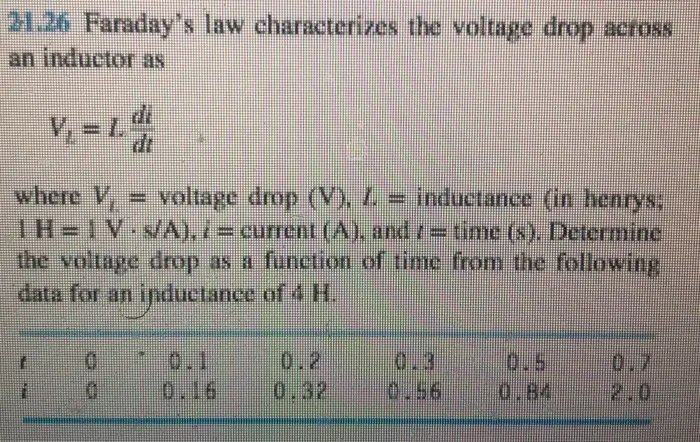

Transcribed Image Text:
21.26 Faraday's law characterizes the voltage drop across
an inductor as
P
V₁ = 1 di
where V voltage drop (V), Z. = inductance (in henrys.
IH=1V-s/A), i = current (A), and time (s). Determine
the voltage drop as a function of time from the following
data for an inductance of 4 H.
C
0.1
0.2
0
0.16
9670
0.7
0.84
2.0
Problem 21.26.
For the first point, use the second-order (O(h²)) forward finite difference. For the last point,
use the second-order (O(h)) backward finite difference. For the intermediate points, use
the centered finite difference of the accuracy O(h²).
Note that for the point -0.3, it has unequally spaced neighbors. Use the method in Section
21.4 to calculate the derivative at this point.
