السؤال
Transcribed Image Text:

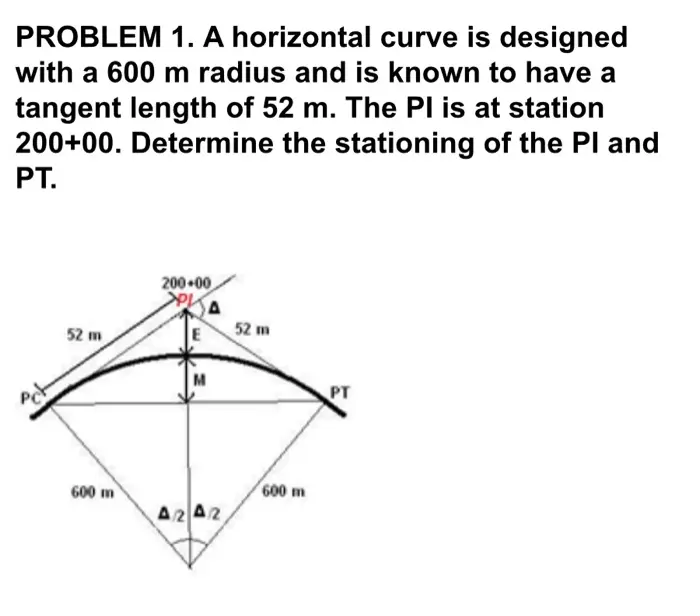

PROBLEM 1. A horizontal curve is designed
with a 600 m radius and is known to have a
tangent length of 52 m. The PI is at station
200+00. Determine the stationing of the PI and
PT.
200.00
A
52 m
E
52 m
M
600 m
600 m
A2A2
PT
