السؤال
Transcribed Image Text:

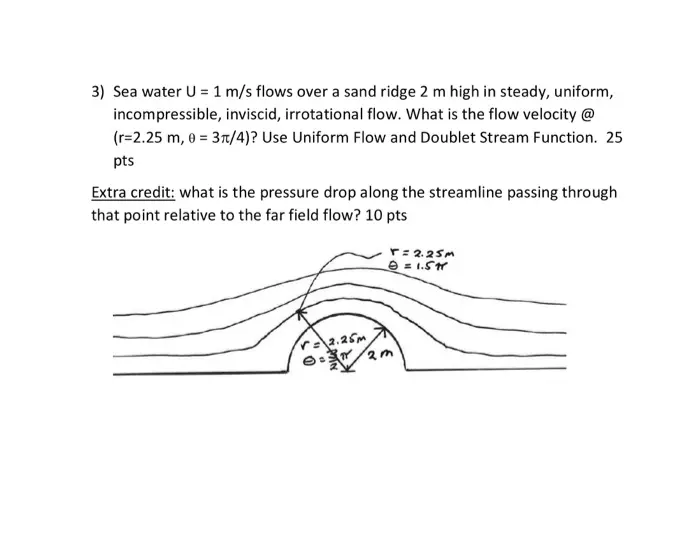

3) Sea water U = 1 m/s flows over a sand ridge 2 m high in steady, uniform,
incompressible, inviscid, irrotational flow. What is the flow velocity @
(r=2.25 m, 0 = 3/4)? Use Uniform Flow and Doublet Stream Function. 25
pts
Extra credit: what is the pressure drop along the streamline passing through
that point relative to the far field flow? 10 pts
r = 2.25m
= 1.5
2.25m
