السؤال

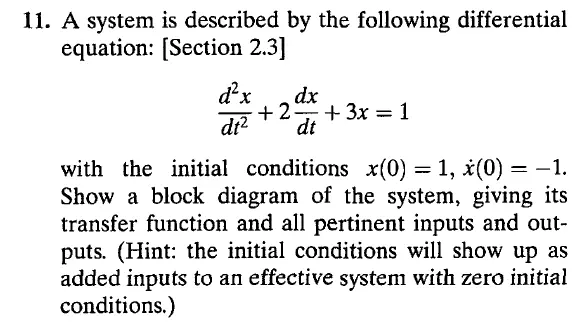

Transcribed Image Text:
11. A system is described by the following differential
equation: [Section 2.3]
d²x
dx
+2.
+3x=1
dt² dt
with the initial conditions x(0) = 1, x(0) = −1.
Show a block diagram of the system, giving its
transfer function and all pertinent inputs and out-
puts. (Hint: the initial conditions will show up as
added inputs to an effective system with zero initial
conditions.)
