السؤال

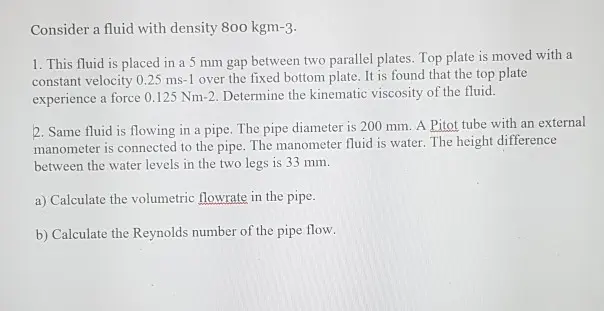

Transcribed Image Text:
Consider a fluid with density 800 kgm-3.
1. This fluid is placed in a 5 mm gap between two parallel plates. Top plate is moved with a
constant velocity 0.25 ms-1 over the fixed bottom plate. It is found that the top plate
experience a force 0.125 Nm-2. Determine the kinematic viscosity of the fluid.
2. Same fluid is flowing in a pipe. The pipe diameter is 200 mm. A Pitot tube with an external
manometer is connected to the pipe. The manometer fluid is water. The height difference
between the water levels in the two legs is 33 mm.
a) Calculate the volumetric flowrate in the pipe.
b) Calculate the Reynolds number of the pipe flow.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
