السؤال

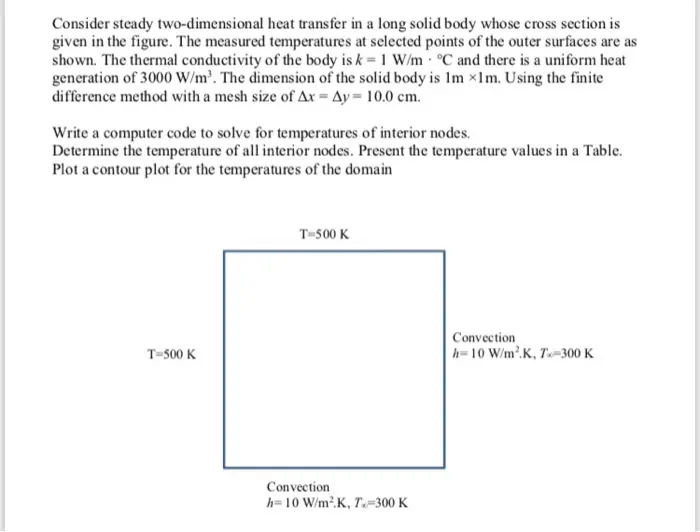

Transcribed Image Text:
Consider steady two-dimensional heat transfer in a long solid body whose cross section is
given in the figure. The measured temperatures at selected points of the outer surfaces are as
shown. The thermal conductivity of the body is k = 1 W/m °C and there is a uniform heat
generation of 3000 W/m³. The dimension of the solid body is 1m x 1m. Using the finite
difference method with a mesh size of Ax = Ay = 10.0 cm.
Write a computer code to solve for temperatures of interior nodes.
Determine the temperature of all interior nodes. Present the temperature values in a Table.
Plot a contour plot for the temperatures of the domain
T-500 K
T-500 K
Convection
h-10 W/m²K, T-300 K
Convection
h-10 W/m².K, T-300 K
