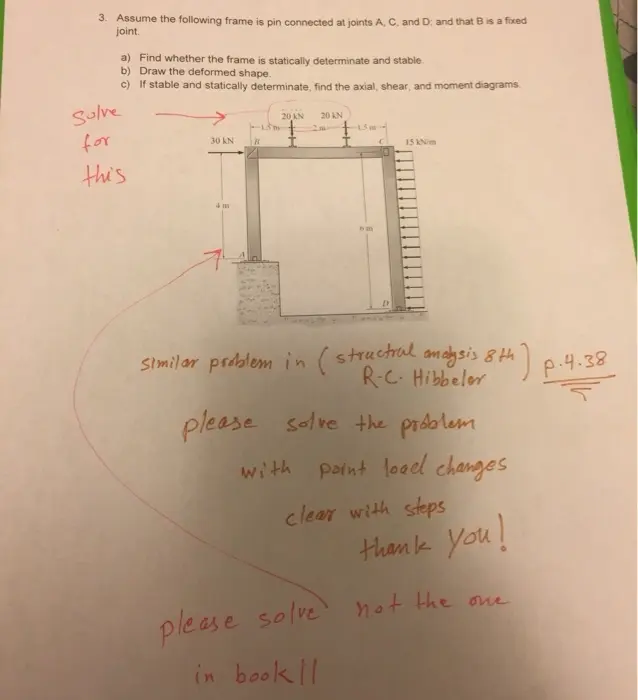

3. Assume the following frame is pin connected at joints A, C, and D. and that B is a fixed joint. Solve for this a) Find whether the frame is statically determinate and stable. b) Draw the deformed shape. c) If stable and statically determinate, find the axial, shear, and moment diagrams. 20 KN 20 KN -13m -15m- 30 KN B 15 kN/m 4 m 6m Similar problem in (structral analysis 8th R-C. Hibbeler please solve the problem 8th) with point load changes clear with steps please solve in book ll thank you! not the one p.4.38 + PROBLEMS 4.5 MOMENT DIAGRAMS CONSTRUCTED BY THE METHOD OF SUPERPO 4-38. Draw the shear and moment diagrams for each of the three members of the frame. Assume the frame is pin connected at A, C, and D and there is a fixed joint at B. -15 m- 50 kN t 2m- 40 kN I 15 kN/m 4-40. Draw the shear and moment member of the frame. Assume A is a pinned. 2k/ 4m 6m Prob 4-4 48 Prob. 4-35 4-39. Draw the shear and moment diagrams for each - member of the frame. Assume the support at A is a pin and Dis a roller. 4-41. Draw the shear and moment diagrams for member of the frami Ane the frame is pin Cand Dand A in thed 8.6km 68km a
