السؤال
Transcribed Image Text:

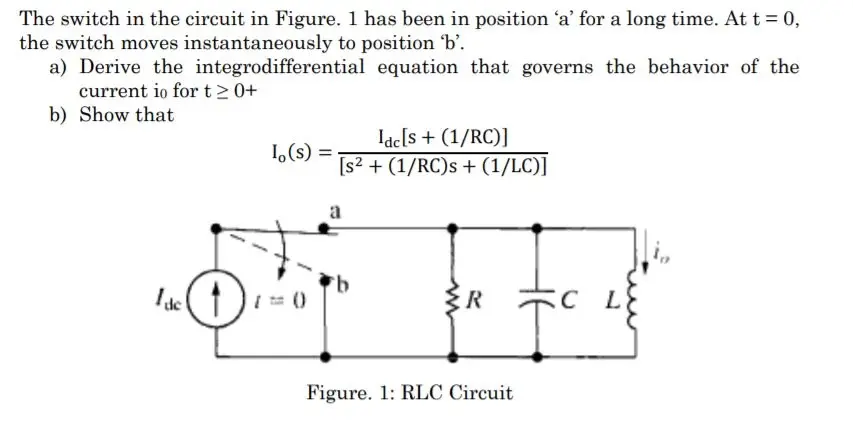

The switch in the circuit in Figure. 1 has been in position 'a' for a long time. At t = 0,
the switch moves instantaneously to position 'b'.
a) Derive the integrodifferential equation that governs the behavior of the
current io for t≥ 0+
b) Show that
Io(s)
=
Idc [s +(1/RC)]
a
[s² +(1/RC)s+ (1/LC)]
R
C L
Ide
Figure. 1: RLC Circuit
