السؤال
Transcribed Image Text:

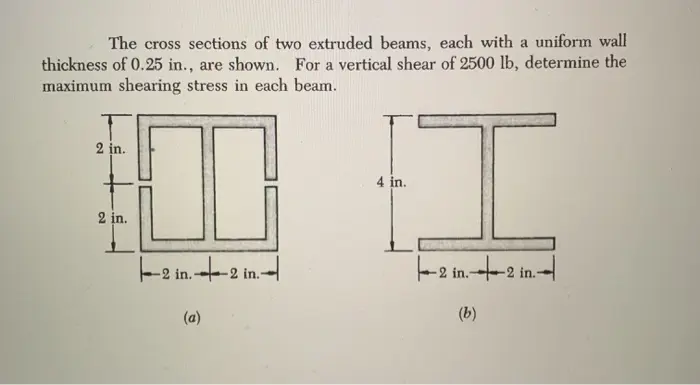

The cross sections of two extruded beams, each with a uniform wall
thickness of 0.25 in., are shown. For a vertical shear of 2500 lb, determine the
maximum shearing stress in each beam.
2 in.
2 in.
4 in.
-2 in.2 in.-
2 in.-
2 in.+2 in.
(a)
(b)
