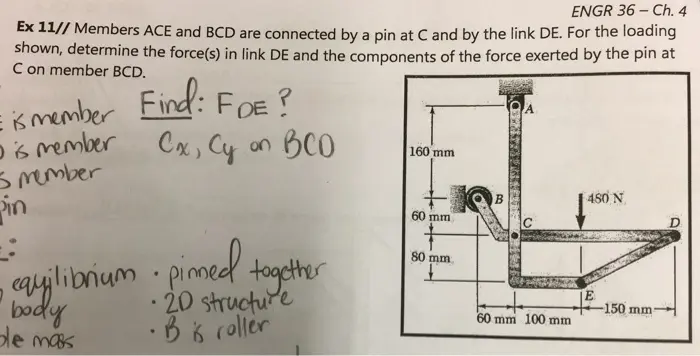

ENGR 36-Ch. 4 Ex 11// Members ACE and BCD are connected by a pin at C and by the link DE. For the loading shown, determine the force(s) in link DE and the components of the force exerted by the pin at C on member BCD. is member is member 5 member Pin Find: FDE? Cx, Cy on BCD equilibrium · pinned together body le mass • • 2D structure Bis roller 160 mm 480 N 60 mm 80 mm -150 mm- 60 mm 100 mm
