السؤال

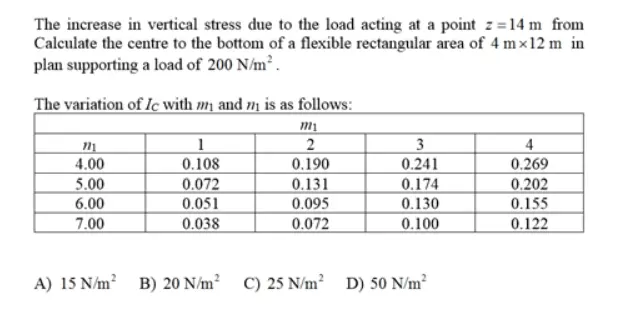

Transcribed Image Text:
The increase in vertical stress due to the load acting at a point z=14 m from
Calculate the centre to the bottom of a flexible rectangular area of 4 mx12 m in
plan supporting a load of 200 N/m².
The variation of Ic with m₁ and m is as follows:
m1
111
1
2
3
4
4.00
0.108
0.190
0.241
0.269
5.00
0.072
0.131
0.174
0.202
6.00
0.051
0.095
0.130
0.155
7.00
0.038
0.072
0.100
0.122
A) 15 N/m² B) 20 N/m² C) 25 N/m² D) 50 N/m²
