السؤال
Transcribed Image Text:

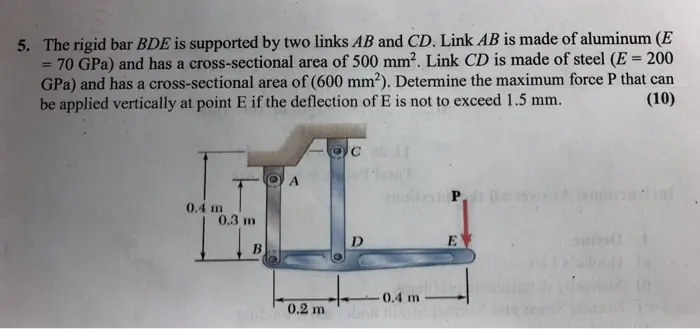

5. The rigid bar BDE is supported by two links AB and CD. Link AB is made of aluminum (E
70 GPa) and has a cross-sectional area of 500 mm². Link CD is made of steel (E = 200
GPa) and has a cross-sectional area of (600 mm2). Determine the maximum force P that can
be applied vertically at point E if the deflection of E is not to exceed 1.5 mm.
C 06:11
(10)
0.4 m
0.3 m
Pensen Atenotion
D
E
B
0.4 m
0.2 m
