السؤال
Transcribed Image Text:

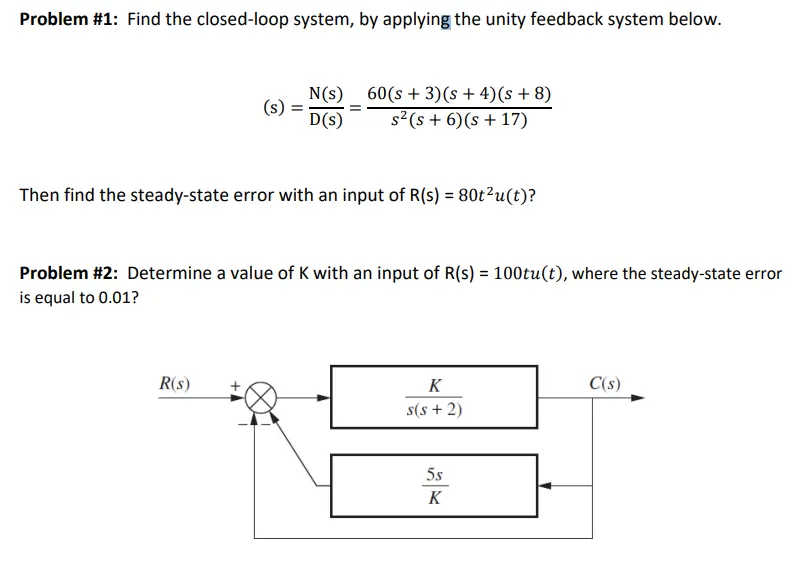

Problem #1: Find the closed-loop system, by applying the unity feedback system below.
N(s)
(s)
D(s)
60(s+3)(s + 4)(s + 8)
s2(s+6)(s+17)
Then find the steady-state error with an input of R(s) = 80t²u(t)?
Problem #2: Determine a value of K with an input of R(s) = 100tu(t), where the steady-state error
is equal to 0.01?
R(s)
K
C(s)
s(s+2)
5s
K
