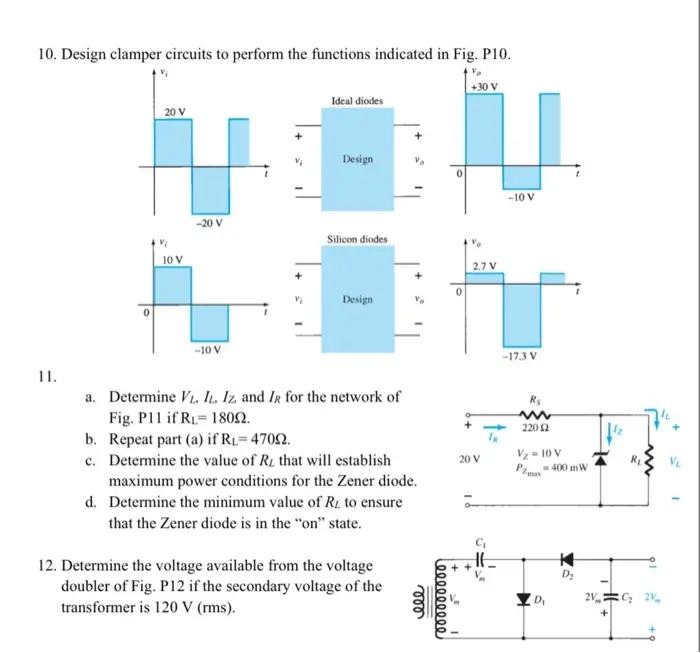

10. Design clamper circuits to perform the functions indicated in Fig. P10. 11. 0 20 V Ideal diodes Design +30 V -20 V Vi Silicon diodes 10 V 2.7 V -10 V Design -10 V -17.3 V a. Determine VL, IL. Iz, and IR for the network of Fig. P11 if RL18092. b. Repeat part (a) if RL-4702. c. Determine the value of R, that will establish maximum power conditions for the Zener diode. d. Determine the minimum value of RL to ensure that the Zener diode is in the "on" state. 12. Determine the voltage available from the voltage doubler of Fig. P12 if the secondary voltage of the transformer is 120 V (rms). 000 000000000 20 V Rs www 220 Ω V₂-10 V Pz= 400 mW max D₁ D₂ 2V C₂
