السؤال
Transcribed Image Text:

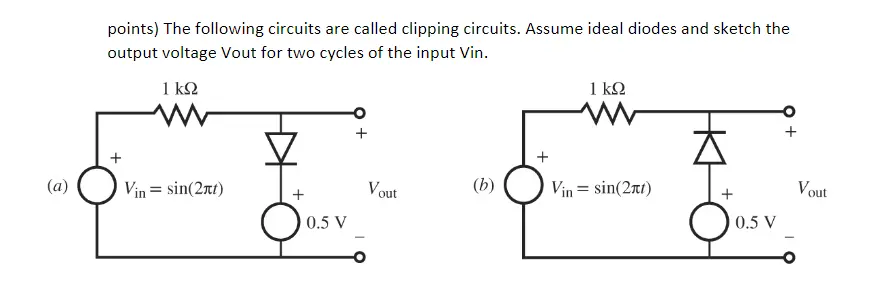

points) The following circuits are called clipping circuits. Assume ideal diodes and sketch the
output voltage Vout for two cycles of the input Vin.
1 ΚΩ
ww
1 ΚΩ
(a)
Vin=sin(2x)
+
0.5 V
-
Vout
+
Vin = sin(2x)
Vout
о
0.5 V
