السؤال

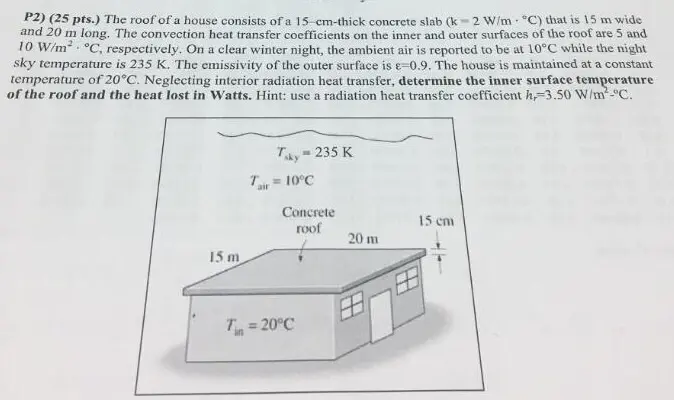

Transcribed Image Text:
P2) (25 pts.) The roof of a house consists of a 15-cm-thick concrete slab (k-2 W/m °C) that is 15 m wide
and 20 m long. The convection heat transfer coefficients on the inner and outer surfaces of the roof are 5 and
10 W/m² °C, respectively. On a clear winter night, the ambient air is reported to be at 10°C while the night
sky temperature is 235 K. The emissivity of the outer surface is -0.9. The house is maintained at a constant
temperature of 20°C. Neglecting interior radiation heat transfer, determine the inner surface temperature
of the roof and the heat lost in Watts. Hint: use a radiation heat transfer coefficient h,-3.50 W/m²-ºC.
15 m
Taky-235 K
T=10°C
air
Concrete
roof
=20°C
Tin=
15 cm
20m
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
