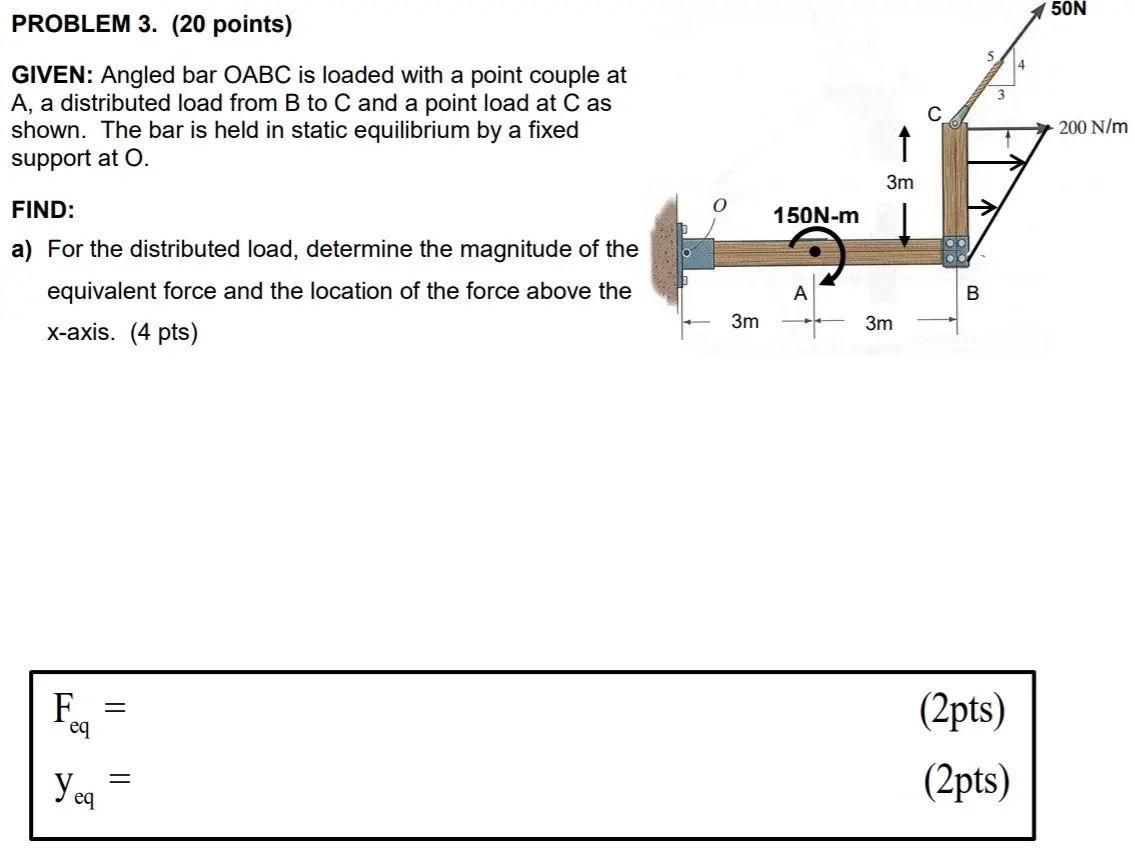

PROBLEM 3. (20 points) GIVEN: Angled bar OABC is loaded with a point couple at A, a distributed load from B to C and a point load at C as shown. The bar is held in static equilibrium by a fixed support at O. FIND: a) For the distributed load, determine the magnitude of the equivalent force and the location of the force above the x-axis. (4 pts) F eq Уес eq = = 3m 150N-m A B 3m 3m (2pts) (2pts) 50N 200 N/m b) On the artwork provided, complete the free-body diagram including the equivalent force (above) and all other applied forces and moments and all reactions at the support. (3 pts) K A ↑ 3m C 3m I 3m B c) Using your free-body diagram, determine the magnitudes of the reactions at support O that are necessary to hold the bar in static equilibrium. (11pts) 0.. = y M.= (3pts) (3pts) (5pts) d) If the applied 150N-m couple at A were shifted toward point B, what effect would this have on the moment reaction at O? (2 pts) M. would (increase, decrease, remain the same) (Circle one) (2pts)
