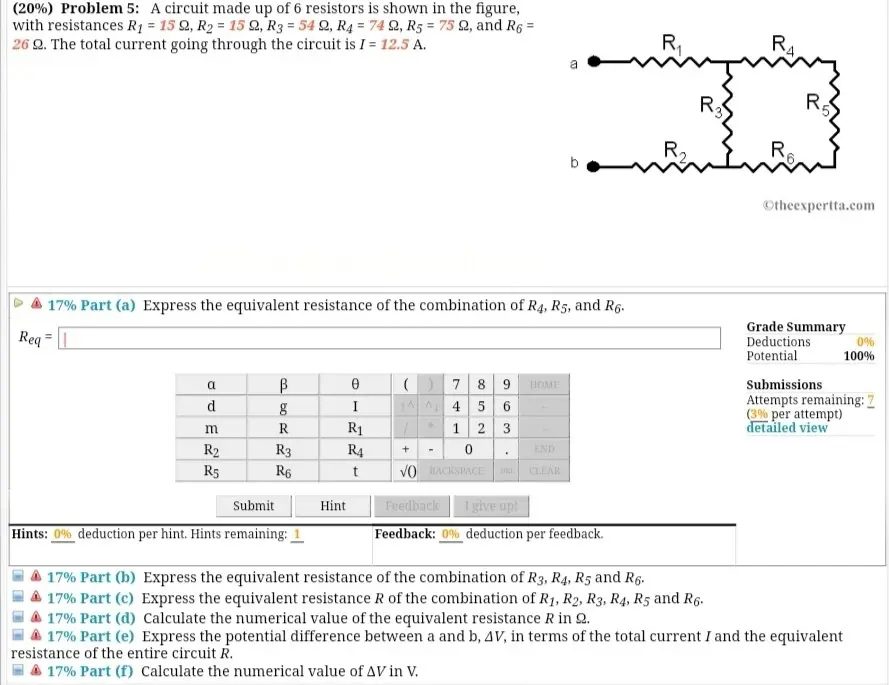

(20%) Problem 5: A circuit made up of 6 resistors is shown in the figure, with resistances R₁ = 15 Q, R2 = 15 Q, R3 = 54 Q, R4 = 74 Q, R5 = 75 Q, and R6 = 26 Q. The total current going through the circuit is I = 12.5 A. R5 བས་འག་་་ R Otheexpertta.com Req 17% Part (a) Express the equivalent resistance of the combination of R4, R5, and R6. ( 7 8 9 TAA4 5 6 1 2 3 HOME a В Ꮎ d g I m R R1 R2 R3 R4 + 0 END . R5 R6 t VO BACKSPACE DEL CLEAR Submit Hint Feedback I give up! Grade Summary Deductions Potential 0% 100% Submissions Attempts remaining: 7 (3% per attempt) detailed view Hints: 0% deduction per hint. Hints remaining: 1 Feedback: 0% deduction per feedback. 17% Part (b) Express the equivalent resistance of the combination of R3, R4, R5 and R6. 17% Part (c) Express the equivalent resistance R of the combination of R1, R2, R3, R4, R5 and R6. A 17% Part (d) Calculate the numerical value of the equivalent resistance R in Q. A 17% Part (e) Express the potential difference between a and b, AV, in terms of the total current I and the equivalent resistance of the entire circuit R. A 17% Part (f) Calculate the numerical value of AV in V.
