السؤال
Transcribed Image Text:

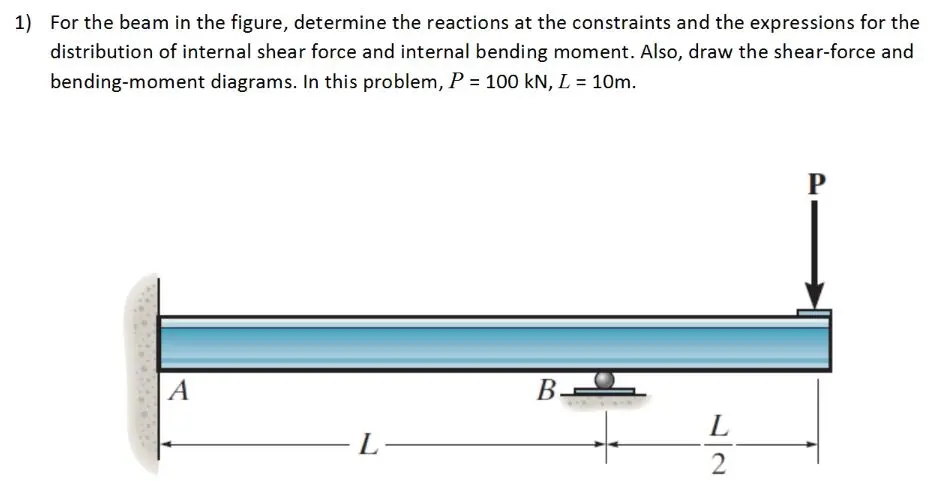

1) For the beam in the figure, determine the reactions at the constraints and the expressions for the
distribution of internal shear force and internal bending moment. Also, draw the shear-force and
bending-moment diagrams. In this problem, P = 100 kN, L = 10m.
A
B
L
L
2
