السؤال
Transcribed Image Text:

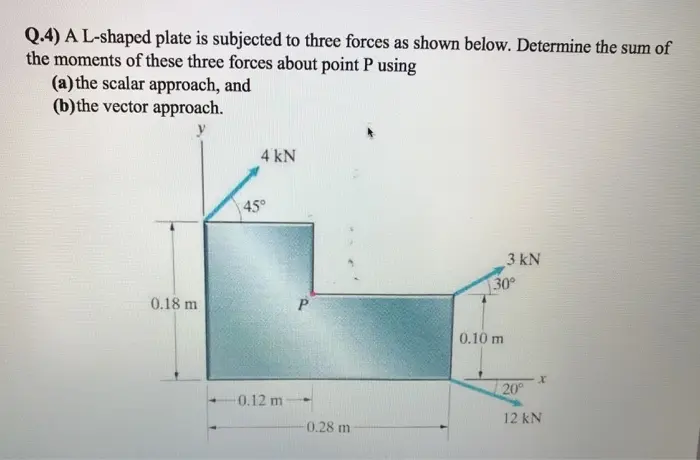

Q.4) A L-shaped plate is subjected to three forces as shown below. Determine the sum of
the moments of these three forces about point P using
(a) the scalar approach, and
(b)the vector approach.
4 kN
0.18 m
45°
0.12 m
0.28 m
3 kN
30°
0.10 m
20°
x
12 kN
