السؤال
Transcribed Image Text:

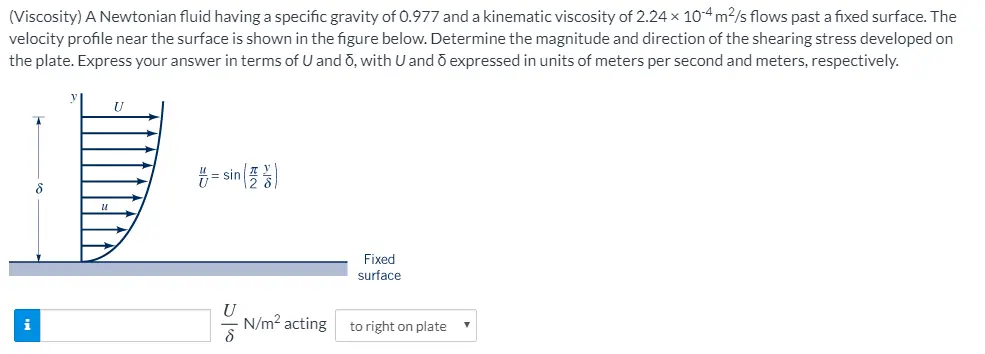

(Viscosity) A Newtonian fluid having a specific gravity of 0.977 and a kinematic viscosity of 2.24 x 104 m2/s flows past a fixed surface. The
velocity profile near the surface is shown in the figure below. Determine the magnitude and direction of the shearing stress developed on
the plate. Express your answer in terms of U and ō, with U and ō expressed in units of meters per second and meters, respectively.
U
=sin()
Fixed
surface
U
i
N/m² acting
to right on plate
