السؤال

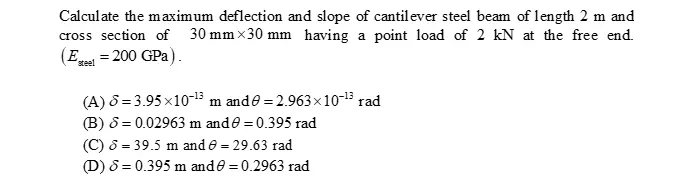

Transcribed Image Text:
Calculate the maximum deflection and slope of cantilever steel beam of length 2 m and
cross section of 30 mm ×30 mm having a point load of 2 kN at the free end.
(Esteel = 200 GPa).
(A)=3.95×10-13 m and 8 = 2.963 × 10-13 rad
(B) = 0.02963 m and 0 = 0.395 rad
(C)
39.5 m and
29.63 rad
(D) 0.395 m and = 0.2963 rad
