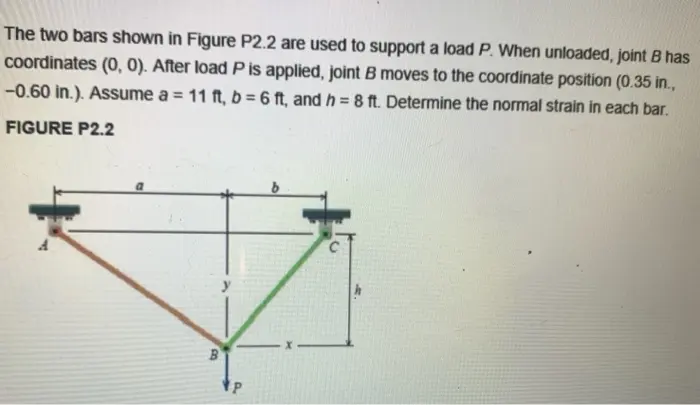

The two bars shown in Figure P2.2 are used to support a load P. When unloaded, joint B has coordinates (0, 0). After load P is applied, joint B moves to the coordinate position (0.35 in., -0.60 in.). Assume a = 11 ft, b = 6 ft, and h = 8 ft. Determine the normal strain in each bar. FIGURE P2.2 B
