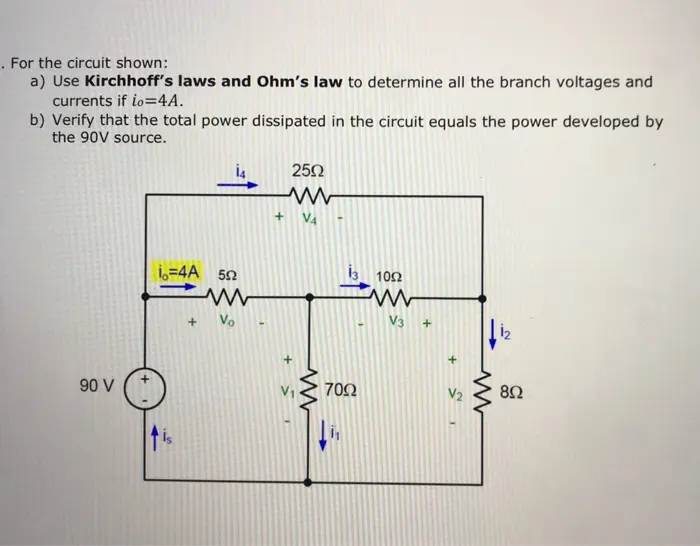

. For the circuit shown:
a) Use Kirchhoff's laws and Ohm's law to determine all the branch voltages and
currents if io=4A.
b) Verify that the total power dissipated in the circuit equals the power developed by
the 90V source.
90 V
10=4A 52
www
+
Vo
2502
www
+
V4
www
7002
1092
www
V3 +
V2
www
80
