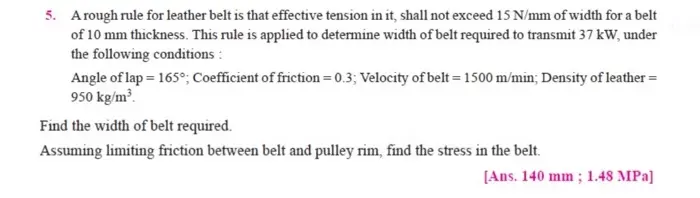

5. A rough rule for leather belt is that effective tension in it, shall not exceed 15 N/mm of width for a belt of 10 mm thickness. This rule is applied to determine width of belt required to transmit 37 kW, under the following conditions: Angle of lap=165°; Coefficient of friction = 0.3; Velocity of belt = 1500 m/min; Density of leather = 950 kg/m³. Find the width of belt required. Assuming limiting friction between belt and pulley rim, find the stress in the belt. [Ans. 140 mm; 1.48 MPa]
