السؤال

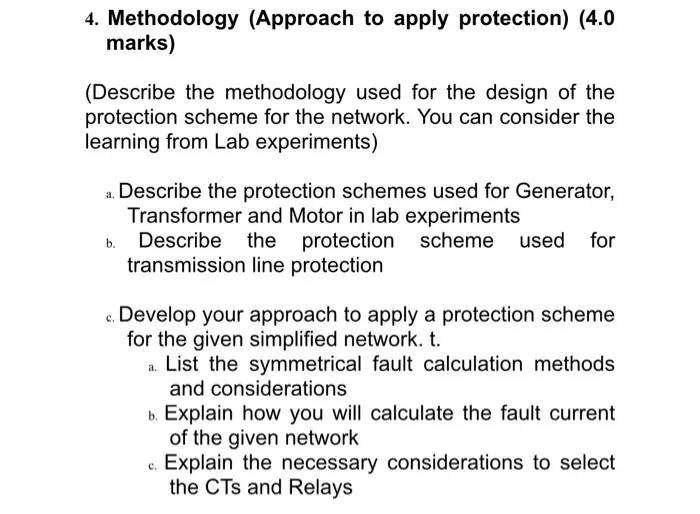

Transcribed Image Text:
4. Methodology (Approach to apply protection) (4.0
marks)
(Describe the methodology used for the design of the
protection scheme for the network. You can consider the
learning from Lab experiments)
Describe the protection schemes used for Generator,
Transformer and Motor in lab experiments
b. Describe the protection scheme used for
transmission line protection
c. Develop your approach to apply a protection scheme.
for the given simplified network. t.
a. List the symmetrical fault calculation methods
and considerations
b. Explain how you will calculate the fault current
of the given network
C.
Explain the necessary considerations to select
the CTs and Relays
