السؤال
Transcribed Image Text:

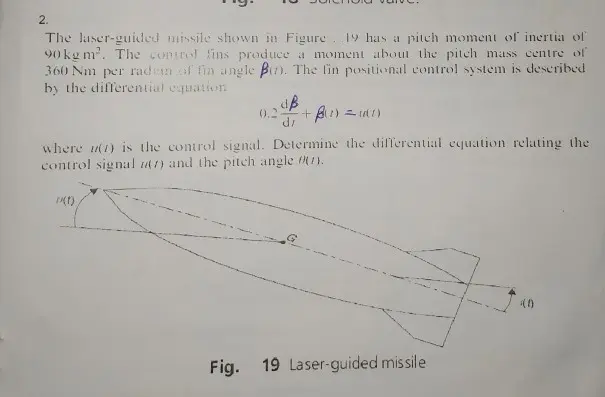

2.
The laser-guided missile shown in Figure 19 has a pitch moment of inertia of
90 kg m2. The control fins produce a moment about the pitch mass centre of
360 Nm per radian of fin angle Bin). The fin positional control system is described
by the differential equation
dB
0.2 + B() = u(1)
where (1) is the control signal. Determine the differential equation relating the
control signal (7) and the pitch angle (1).
((1)
Fig. 19 Laser-guided missile
40
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
