السؤال
Transcribed Image Text:

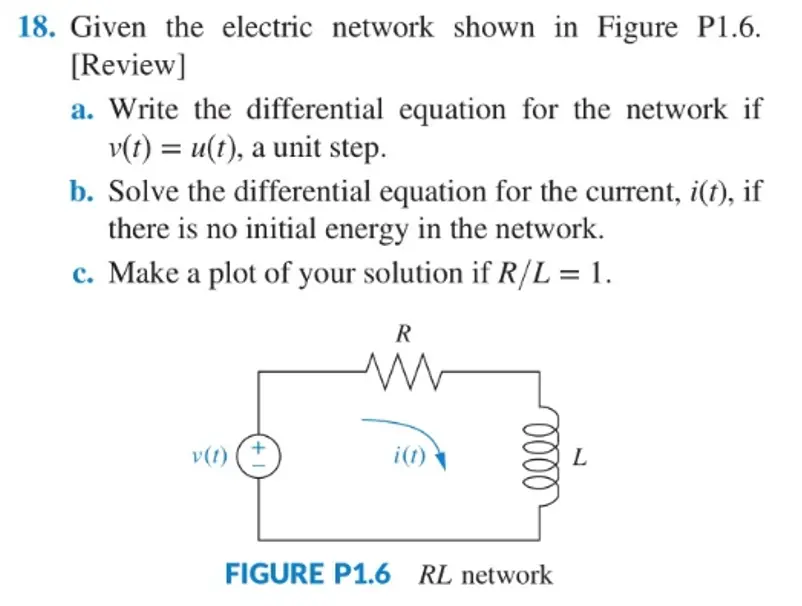

18. Given the electric network shown in Figure P1.6.
[Review]
a. Write the differential equation for the network if
v(t) = u(t), a unit step.
b. Solve the differential equation for the current, i(t), if
there is no initial energy in the network.
c. Make a plot of your solution if R/L = 1.
R
w
v(t)
i(t)
0000
L
FIGURE P1.6 RL network
