For the three-cart system illustrated in Figure 2, obtain the equations of motion. The system has three
inputs u(t), u2(t), and us(t) and three outputs x1(t), 2(t), and r3(t). Obtain three second-order
differential equations with constant coefficients. Write the equations of motion in matrix form. Once
the system has been represented in matrix form, find the transfer function X1(s)/U3(s) for U2(s) =
U3(8) = 0. (30 pts.)
=
112
k₁
k₂
kz
M₁
www
M₂
wwwy
M3
b₁
00 b₂
OO
by

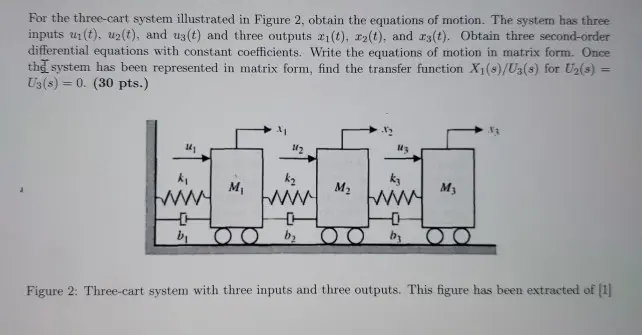

Figure 2: Three-cart system with three inputs and three outputs. This figure has been extracted of [1]
