السؤال
Transcribed Image Text:

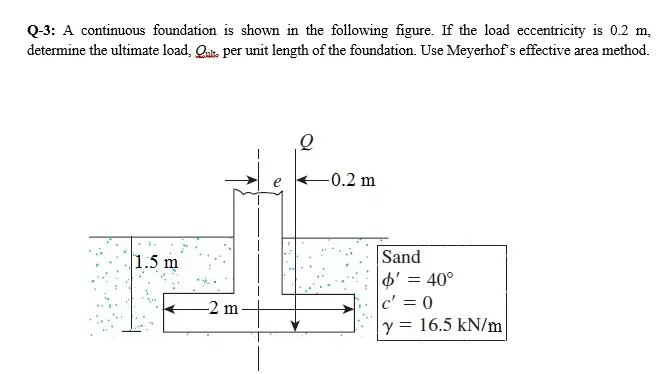

Q-3: A continuous foundation is shown in the following figure. If the load eccentricity is 0.2 m.
determine the ultimate load, Qui per unit length of the foundation. Use Meyerhof's effective area method.
1.5 m
Q
-0.2 m
-2 m
Sand
= 40°
c' = 0
y = 16.5 kN/m
