السؤال
Transcribed Image Text:

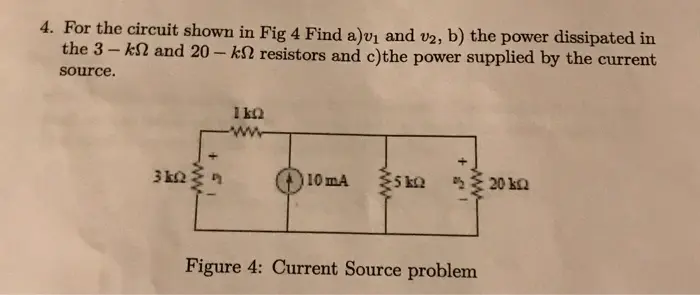

4. For the circuit shown in Fig 4 Find a)v₁ and v2, b) the power dissipated in
the 3-k and 20-k resistors and c)the power supplied by the current
source.
3 ΚΩ
1kQ
www
10 mA
5kQ
20 k
Figure 4: Current Source problem
