السؤال
Transcribed Image Text:

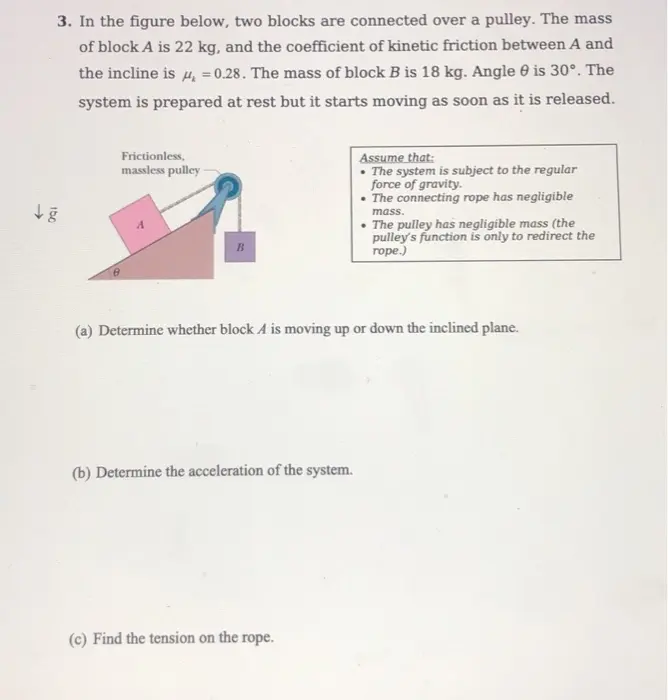

3. In the figure below, two blocks are connected over a pulley. The mass
of block A is 22 kg, and the coefficient of kinetic friction between A and
the incline is 4, 0.28. The mass of block B is 18 kg. Angle is 30°. The
system is prepared at rest but it starts moving as soon as it is released.
->
150
Frictionless,
massless pulley
B
Assume that:
The system is subject to the regular
force of gravity.
The connecting rope has negligible
mass.
The pulley has negligible mass (the
pulley's function is only to redirect the
rope.)
(a) Determine whether block A is moving up or down the inclined plane.
(b) Determine the acceleration of the system.
(c) Find the tension on the rope.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
