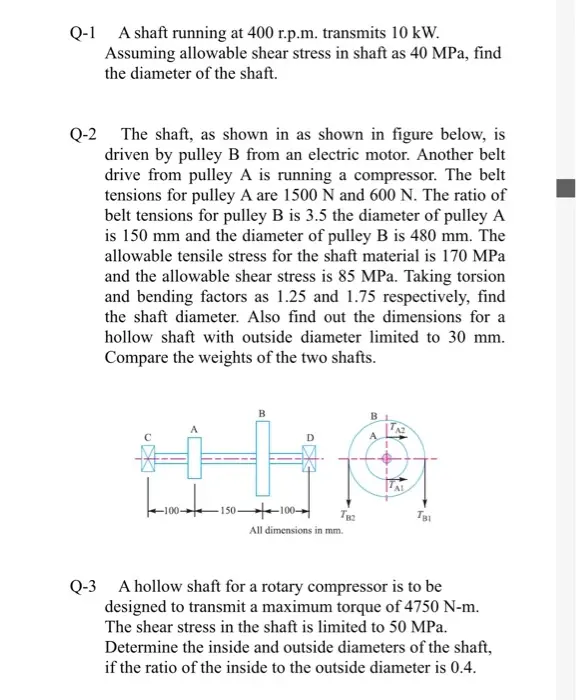

Q-1 A shaft running at 400 r.p.m. transmits 10 kW. Assuming allowable shear stress in shaft as 40 MPa, find the diameter of the shaft. Q-2 The shaft, as shown in as shown in figure below, is driven by pulley B from an electric motor. Another belt drive from pulley A is running a compressor. The belt tensions for pulley A are 1500 N and 600 N. The ratio of belt tensions for pulley B is 3.5 the diameter of pulley A is 150 mm and the diameter of pulley B is 480 mm. The allowable tensile stress for the shaft material is 170 MPa and the allowable shear stress is 85 MPa. Taking torsion and bending factors as 1.25 and 1.75 respectively, find the shaft diameter. Also find out the dimensions for a hollow shaft with outside diameter limited to 30 mm. Compare the weights of the two shafts. -100- B -150-100 All dimensions in mm. BL A AL Q-3 A hollow shaft for a rotary compressor is to be designed to transmit a maximum torque of 4750 N-m. The shear stress in the shaft is limited to 50 MPa. Determine the inside and outside diameters of the shaft, if the ratio of the inside to the outside diameter is 0.4. Q-1 A motor car shaft consists of a steel tube 30 mm internal diameter and 4 mm thick. The engine develops 10 kW at 2000 r.p.m. Find the maximum shear stress in the tube when the power is transmitted through a 4:1 gearing. Q-2 A cylindrical shaft made of steel of yield strength 700 MPa is subjected to static loads consisting of a bending moment of 10 kN-m and a torsional moment of 30 kN-m. Determine the diameter of the shaft using two different theories of failure and assuming a factor of safety of 2. Q-3 A line shaft rotating at 200 r.p.m. is to transmit 20 kW. The allowable shear stress for the material of the shaft is 42 MPa. If the shaft carries a central load of 900 N and is simply supported by bearing 3 meter apart, determine the diameter of the shaft. The maximum tensile or compressive stress is not to exceed 56 MPa. Q-1 Two plates 16 mm thick are joined by a double riveted lap joint. The pitch of each row of rivets is 90 mm. The rivets are 25 mm in diameter. The permissible stresses are as follows: ot = 140 MPa; t = 110 MPa and σc = 240 MPa Find the efficiency of the joint. Q-2 A single riveted double cover butt joint is made in 10 mm thick plates with 20 mm diameter rivets with a pitch of 60 mm. Calculate the efficiency of the joint, if ot= 100 MPa; 80 MPa and oc = 160 MPa. Q-3 A double riveted double cover butt joint is made in 12 mm thick plates with 18 mm diameter rivets. Find the efficiency of the joint for a pitch of 80 mm, if ot=115 MPa = 80 MPa and σc = 160 MPa. Q-1 Design a compression helical spring to carry a load of 500 N with a deflection of 25 mm. The spring index may be taken as 8. Assume the following values for the spring material: Permissible shear stress = 350 MPa Modulus of rigidity 84 kN/mm2. Calculate the following:- a. Wire diameter b. Spring Diameter c. Number of coils Q-2 A helical valve spring is to be designed for an operating load range of approximately 90 to 135 N. The deflection of the spring for the load range is 7.5 mm. Assume a spring index of 10. Permissible shear stress for the material of the spring 480 MPa and its modulus of rigidity 80 kN/mm2. Design the spring. Calculate the following:- d. Wire diameter e. Spring Diameter f. Number of coils Q-3 A helical torsion spring of mean diameter 60 mm is made of a round wire of 6 mm diameter. If a torque of 6 N-m is applied on the spring, find the bending stress induced and the angular deflection of the spring in degrees. The spring index is 10 and modulus of elasticity for the spring material is 200 kN/mm2. The number of effective turns may be taken as 5.5
