السؤال
Transcribed Image Text:

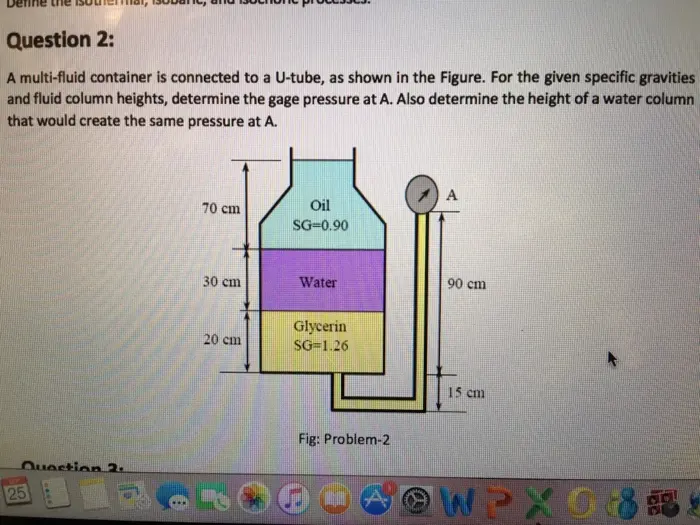

Question 2:
A multi-fluid container is connected to a U-tube, as shown in the Figure. For the given specific gravities
and fluid column heights, determine the gage pressure at A. Also determine the height of a water column
that would create the same pressure at A.
A
70 cm
Oil
SG=0.90
30 cm
Water
90 cm
Glycerin
20 cm
SG=1.26
15 cm
Question 2.
Fig: Problem-2
25
WPXO88
